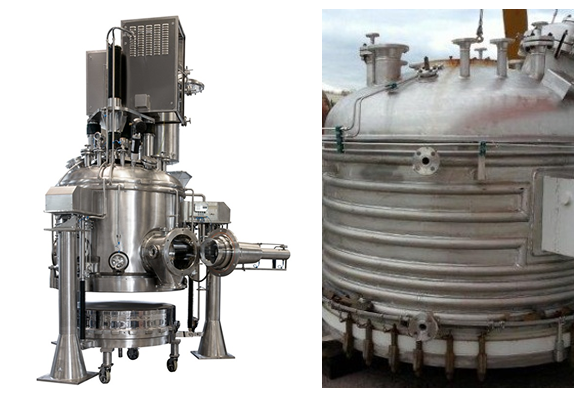

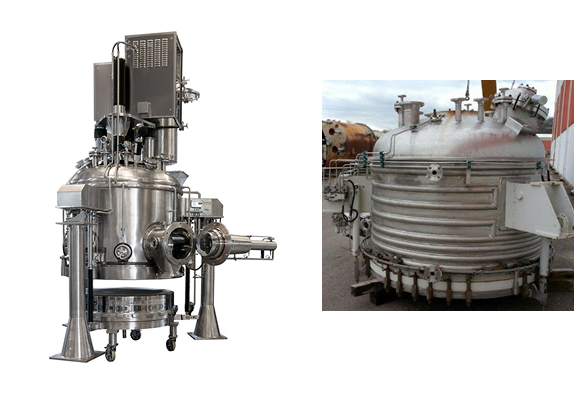

Agitated Nutsche Filter & Dryer (ANFD)
Filtration, Washing & Drying – All in One Sealed Operation
Shree Shakti Engineering Works designs and fabricates Agitated Nutsche Filter Dryers (ANFDs) used for critical solid-liquid separation processes in pharmaceutical, chemical, API, and intermediate industries. ANFDs allow filtration, cake washing, drying, and discharge in a fully sealed, GMP-compliant environment — eliminating product contamination and operator exposure.
Our ANFDs are available in manual, semi-automatic, and fully automated configurations, designed to meet FDA / GMP / cGMP requirements for sterile operations.
Design Options Available
- Top-Open or Top-Dish Closure (Hydraulic / Manual)
- Agitator Drive – Top-mounted with variable RPM
- Shaft Sealing – Single / Double Mechanical Seal or Gland
- Discharge Valve – Manual / Pneumatic / Hydraulic
- Drive Type – Motor with Inline / Planetary / Worm Gearbox
- Mounting – Leg-supported or Skirt-mounted
- CIP / SIP Capable Units
Design Inputs Required (From Client)
| Parameter | Required Details |
|---|---|
| Capacity | Working volume (litres or KL) |
| Operating Pressure & Temp | Vacuum / Positive Pressure, Jacket/Agitator Temp |
| Filtration Medium & Cake Properties | Type, cake height, wash cycles |
| MOC | SS304, SS316L, Hastelloy, Alloy 20, etc. |
| Agitator Requirements | RPM, Torque, Lifting/Lowering stroke |
| Shaft Seal Type | Gland, Single, or Double Mechanical Seal |
| Drying / Vacuum Arrangement | Required Y/N – Condenser, Receiver, Pump |
| Instrumentation | Pressure Gauge, Vacuum Gauge, TC, Sight Glass |
Design Specifications
| Capacity | 50 Litres to 10 KL |
| Filtration Area | 0.1 to 6 m² |
| Operating Pressure | Full vacuum to +6 bar |
| Temp Range | Up to 180°C (jacket) |
| MOC | SS304 / SS316 / SS316L / Hastelloy / Alloy 20 |
| Surface Finish | Mirror, Electro-Polished, or Matt (as per GMP/cGMP) |
| Internals | CIP Spray Balls, PTFE Linings, Sight Glass, Light Glass, TC Clamp Ports |
| Control | Manual, Semi-Auto, or PLC Based Automation |
Design Codes & Standards
- ASME Section VIII, Div. 1 –Pressure design
- IS 2825 – Indian vessel design standards
- GMP / cGMP Compliance –For pharma & food-grade systems
- EN 13445 / PED 2014/68/EU –Optional for export units
- WPS / PQR qualified welders and validated procedures
- Internal QA and TPI approvals –TÜV, SGS, IRClass, CEIL, etc.
Quality Control & Inspection
- Raw Material & Welding Inspection
- Agitator Alignment & Load Testing
- Hydro & Pneumatic Pressure Testing
- Surface Roughness Inspection (for GMP)
- Radiography / DPT / UT as per weld class
- Final Validation & TPI Witness (as applicable)
Optional Features / Customizations
- Vacuum Condenser & Receiver System
- Double Mechanical Seal with Thermosyphon
- Flush Bottom Valve / Automated Discharge
- Temperature Sensors, Load Cells, Control Panel
- Glass Viewports with Illumination
- Jacketed / Limpet / Internal Coil for Drying
- Skid-Mounted CIP/SIP System
- ATEX/FLP Motor with VFD
Industries Served
- Active Pharmaceutical Ingredients (API)
- Bulk Drugs & Intermediates
- Specialty & Fine Chemicals
- Agrochemicals
- Nutraceuticals & Herbal Extracts
- Dyes, Pigments & Food Additives
