Storage Tanks
Aboveground & Underground Storage Solutions – On-Site & Field Fabrication

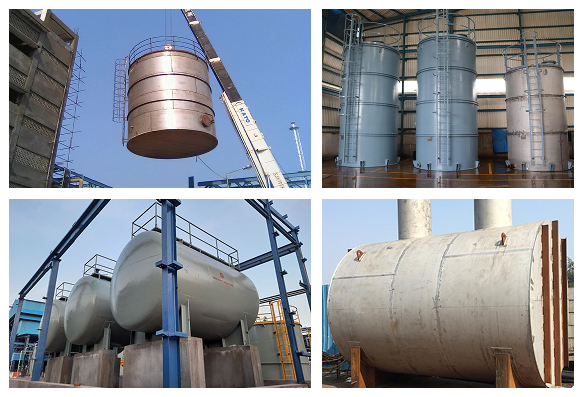

Shree Shakti Engineering Works designs and fabricates industrial storage tanks for safe storage of liquids, solvents, chemicals, and utilities across various process industries. We offer both shop-fabricated tanks (up to 100 KL) and on-site fabricated tanks (up to 500 KL) depending on logistics, access, and project scale.
Our tanks are custom-built to suit the fluid type, corrosion resistance, capacity, and regulatory requirements. We follow stringent codes such as API 650, IS 803, and IS 10987, ensuring long-lasting, leak-proof performance.
Types of Storage Tanks Offered
- Aboveground Vertical Cylindrical Tanks
- Horizontal Tanks (Leg / Saddle Mounted)
- Underground Storage Tanks (UGT)
- API 650 Welded Storage Tanks
- Cone Roof / Dome Roof / Open Top Tanks
- Flat Bottom / Sloped Bottom / Dished Bottom Tanks
- Insulated / Heated Tanks (with Coil or Jacket)
- Skid-Mounted Transportable Tanks
Fabrication Capacity
- In-House Shop Fabrication: Up to 100 KL
- On-Site Field Fabrication: Up to 500 KL and above
- Dismantling / Modification / Expansion of existing tanks also available
Design Inputs Required (From Client)
| Parameter | Required Details |
|---|---|
| Capacity | Working & Total Volume (KL / Litres) |
| Type of Liquid | Chemical nature, density, corrosiveness |
| Location | Aboveground / Underground |
| Operating Pressure / Vacuum | If applicable |
| Material of Construction | SS304, SS316, CS (SA516, IS 2062), Duplex, etc |
| Roof Type / Bottom Type | Cone / Dome / Open |
| Accessories | Manholes, Nozzles, Vent, Ladder, Earthing, etc. |
| Insulation / Heating Option | As per temperature control needs |
Design Specifications
| Volume | 1 KL to 500 KL |
| Diameter | Custom as per site / transport limitations |
| Orientation | Vertical / Horizontal |
| MOC | SS304, SS316L, SA516 Gr.70, IS 2062, Cladded Plates |
| Roof Types | Cone, Dome, Flat |
| Bottom Types | Flat, Sloped, Dished |
| Surface Finish | Painted / Grit Blasted / Pickled & Passivated |
| Lifting Lugs / Skirt / Leg Supports / Saddles | as per site needs |
Design Codes & Standards
- API 650 –Welded steel tanks for oil & chemicals
- IS 803 – Indian standard for vertical tanks
- IS 10987 – Underground steel tanks
- ASME Section VIII (where pressurized)
- Client-Specific Guidelines –For OEMs / EPCs / Consultants
- EN Standards –PED compliant design
Optional Accessories
- Level Gauge / Sight Glass
- Earthing Lugs, Ladders, Railings
- Heating Coils / External Jacket
- Breather Valves, Vent Pipes
- Manholes, Dip Pipes, Thermowells
- SS or Aluminum Cladding for Insulation
- Skid Base or Civil Foundation-ready supports
Industries Served
- Chemical & Agrochemical Plants
- Pharmaceuticals
- Oil & Gas / Petrochemicals
- Dyes & Pigments
- Utilities – Water, Diesel, Effluent, Fire Water
- Edible Oil / Food Grade Storage
- Boiler Houses / ETP / STP Plants
